Potentiometer
PUSH-250B

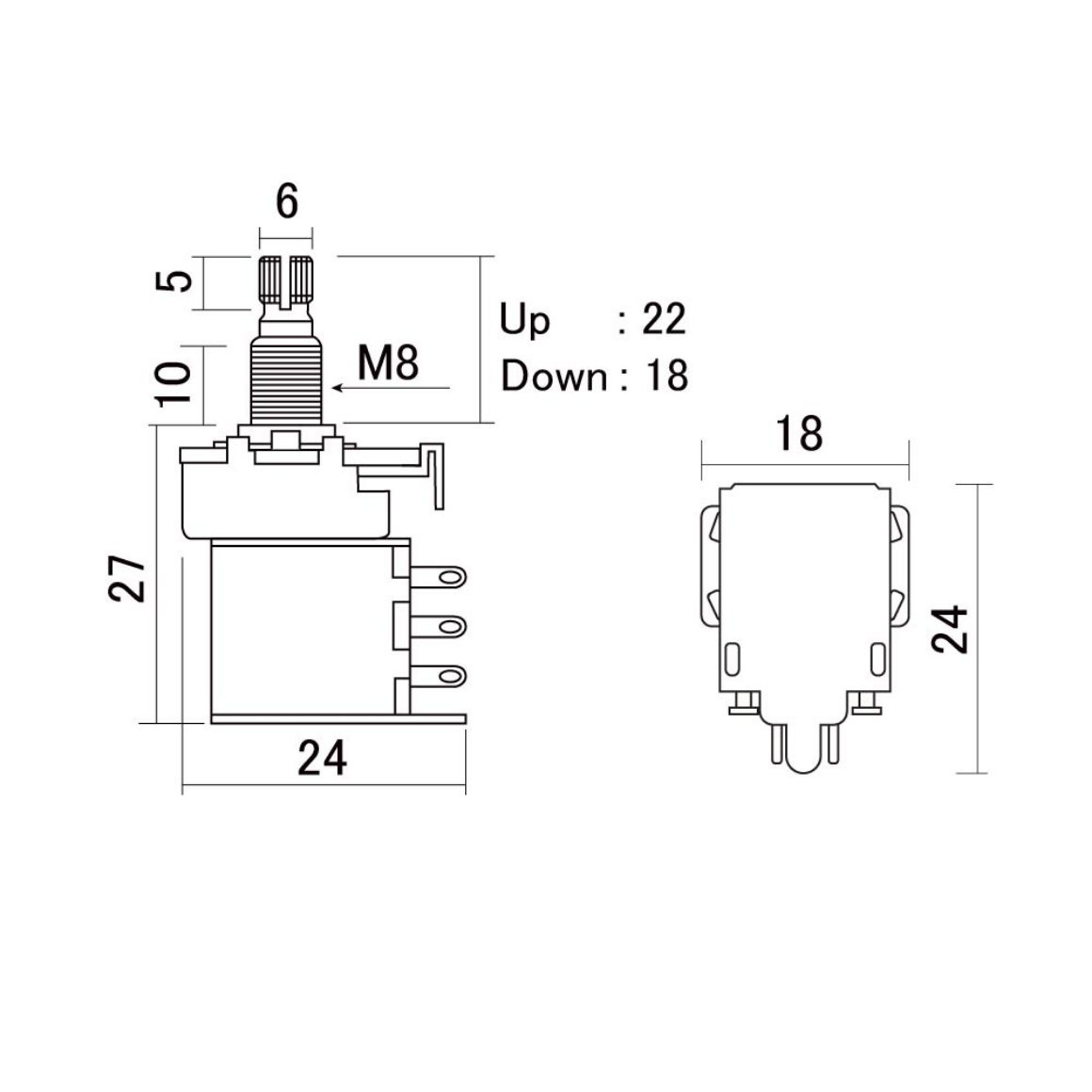

Product Spec
Item
Push / Pull Control Potentiometer
Ohm
250K
Taper
B type ( Linear taper)
*
Fits our metric sized knobs.
1 nut and 1 washer.

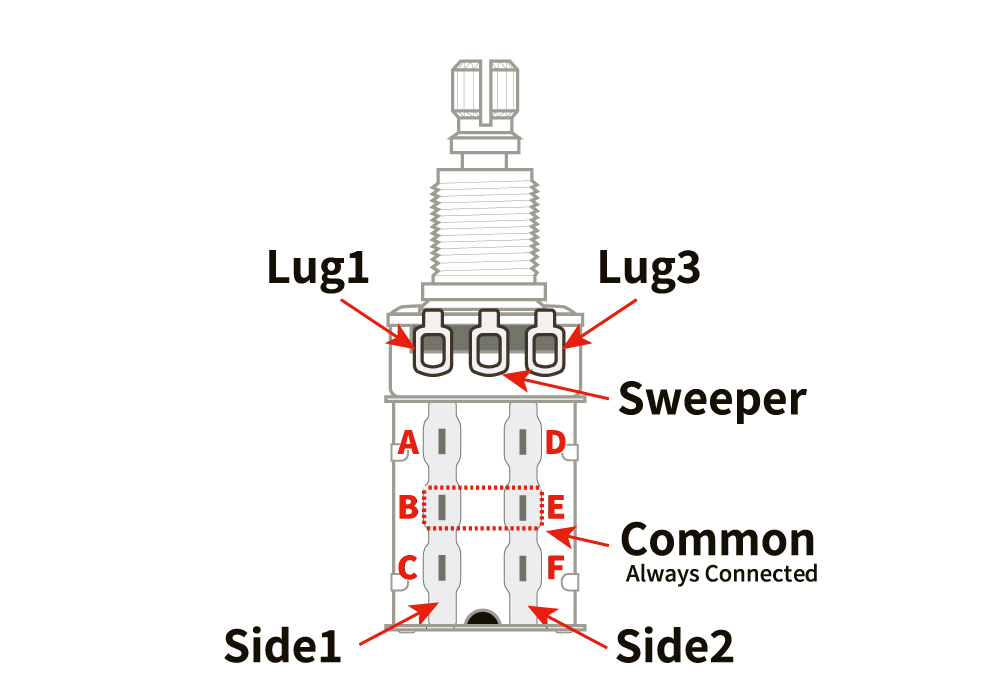

Characteristic
“When pushed down, the Selector interacts with the bottom 4 lugs (B-C-E-F).”
B connects to C
E connects to F
“When pulled up, so it does with the top 4 lugs (A-B-D-E).”
B connects to A
E connects to D
As you can see, B and E stay connected.
