CTS Push-Pull DPDT Potentiometer
CTS-A500-PPL
Product Spec
Type
CTS Push-Pull DPDT Potentiometers
Long Split shaft
Ohm
500K
Taper
A type ( Audio taper )

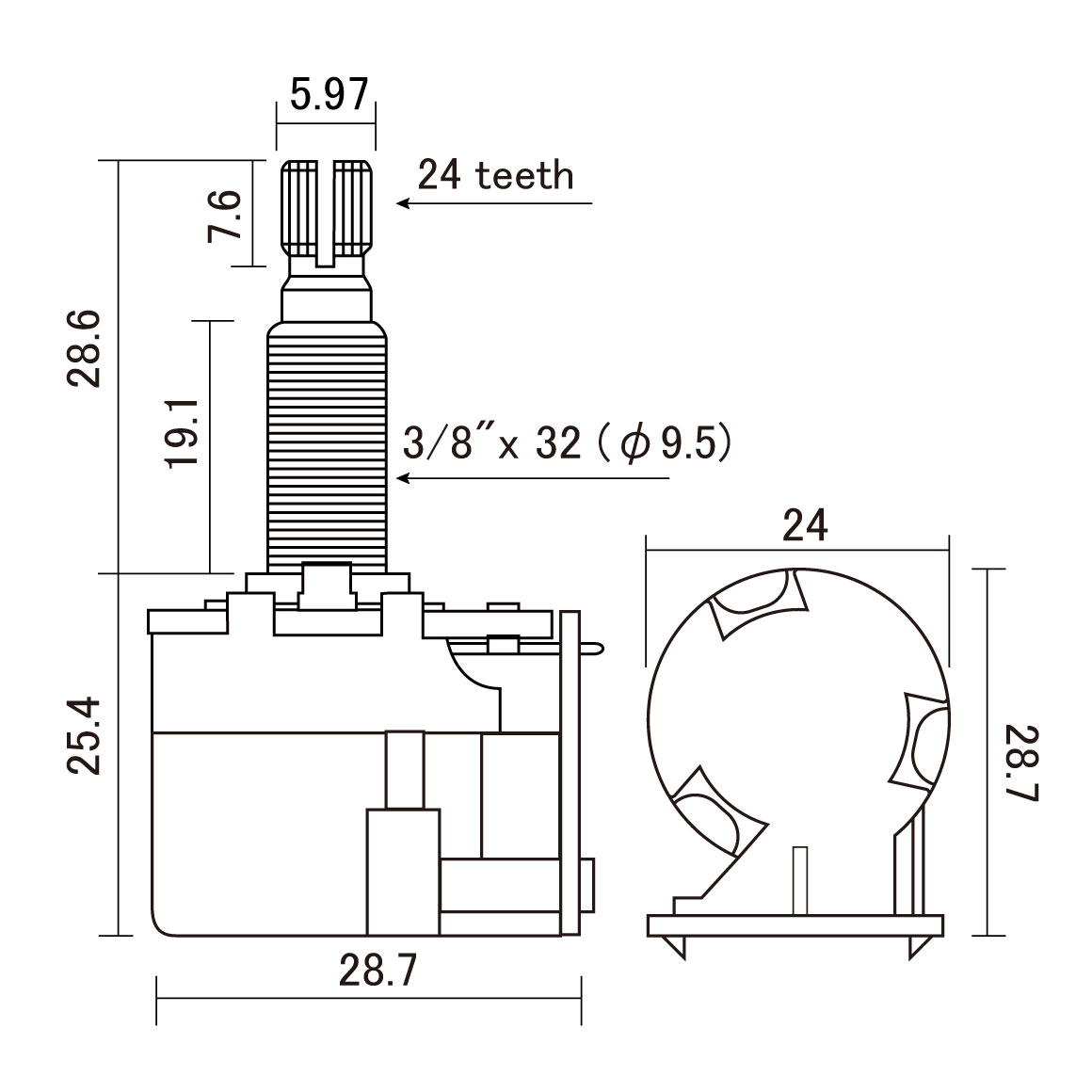

Thread height
19mm
Shaft height
28.5mm
*
Fits our Inch sized knobs.
Characteristic
"When pushed down, the Selector interacts with the bottom 4 lugs (B-C-E-F)."
C1 connects to 2
C2 connects to 4
"When pulled up, so it does with the top 4 lugs (A-B-D-E)."
C1 connects to 1
C2 connects to 3
As you can see, C1 and C2 stay connected.
