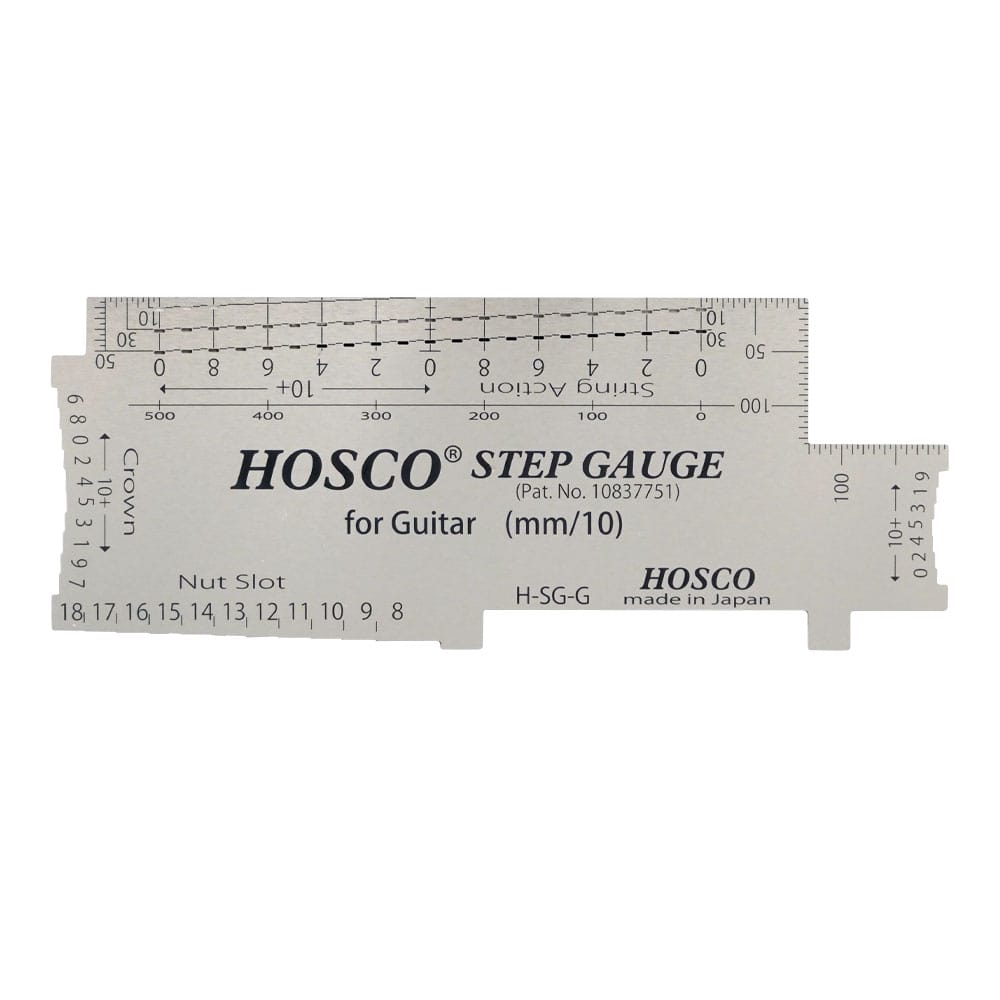

Characteristic
Play Video
3 basic functions
“Nut slot height”
by 0.1mm correctly
“Fret crown height”
by 0.1mm quickly
“String action”
by 0.1mm clearly with slits
Other functions

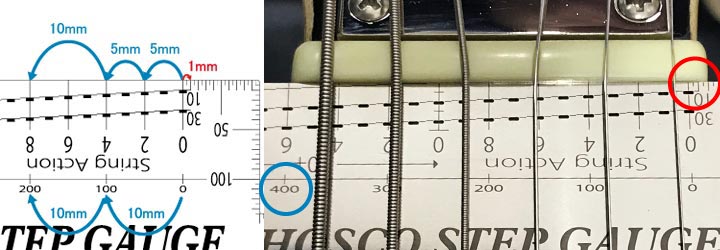

Nut width (400+20) /10=42mm

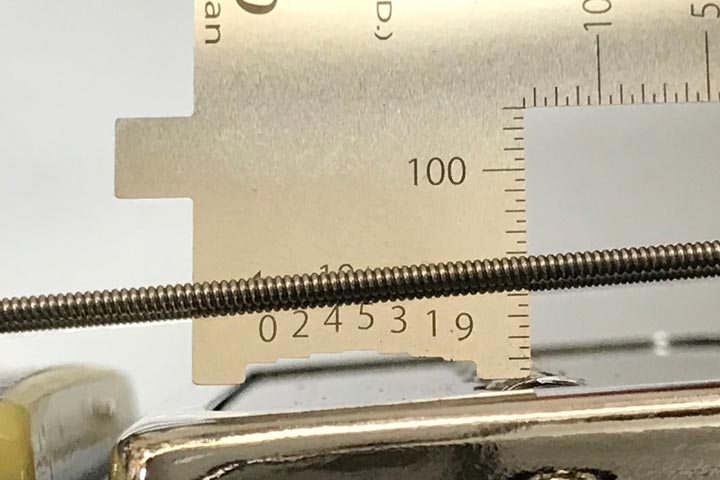

Pickup height
Saddle Slot depth

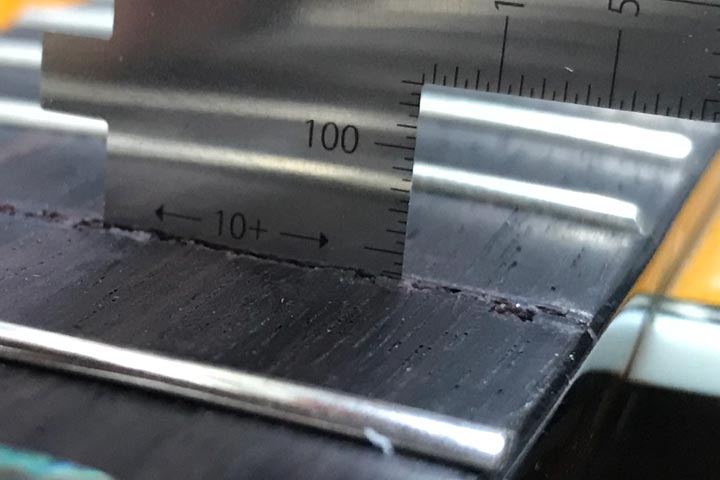

Fret Slot depth
- How to use (H-SG-G) -
Nut Slot height

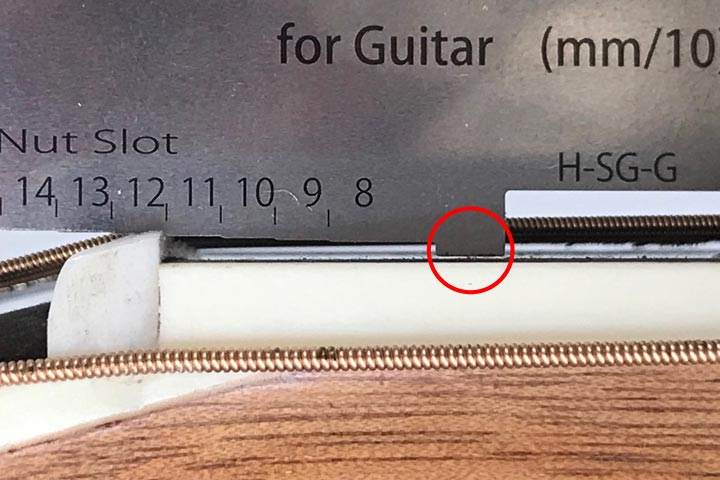

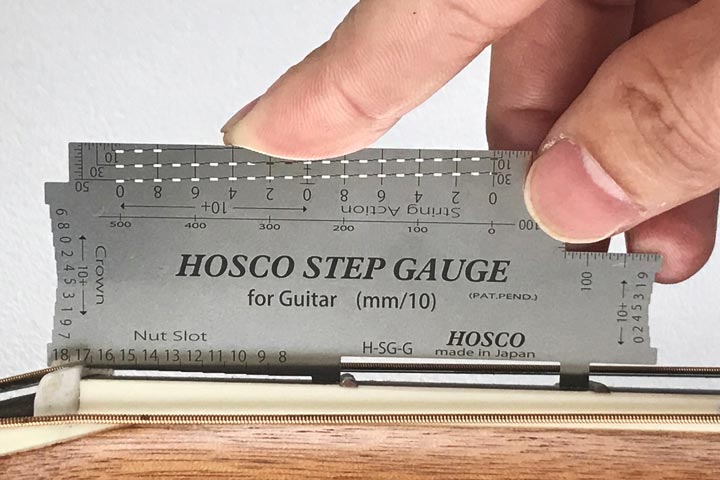

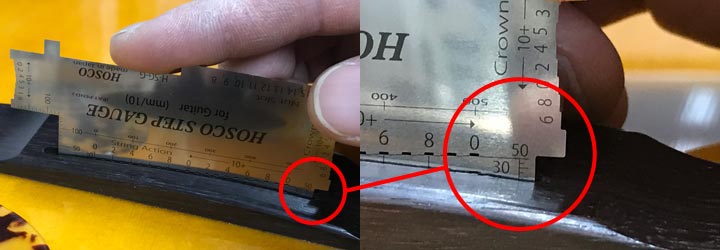

1 : Set Step Gauge (Nut Slot part) in the string slot which you want to check, and then put Step Gauge
(2 legs) to contact a fingerboard. Slide the gauge to headstock keeping both legs contacting a fingerboard. Step Gauge will stop when the gauge contacts nut slot.
(2 legs) to contact a fingerboard. Slide the gauge to headstock keeping both legs contacting a fingerboard. Step Gauge will stop when the gauge contacts nut slot.

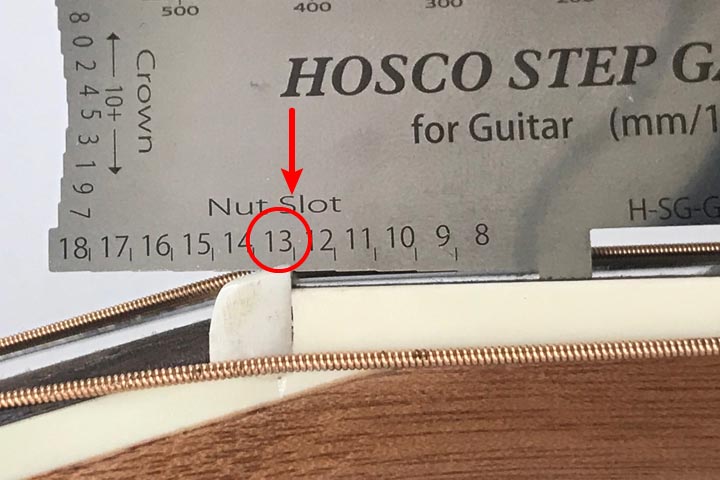

2 : Read the number on the nut. Number is 10 times of mm. So devide by 10.
ex. 13, 13/10=1.3mm
ex. 13, 13/10=1.3mm
Caution ! : If the leg is floating from fingerboard. Slide back the gauge until both legs contact a fingerboard again.
Fret Crown height

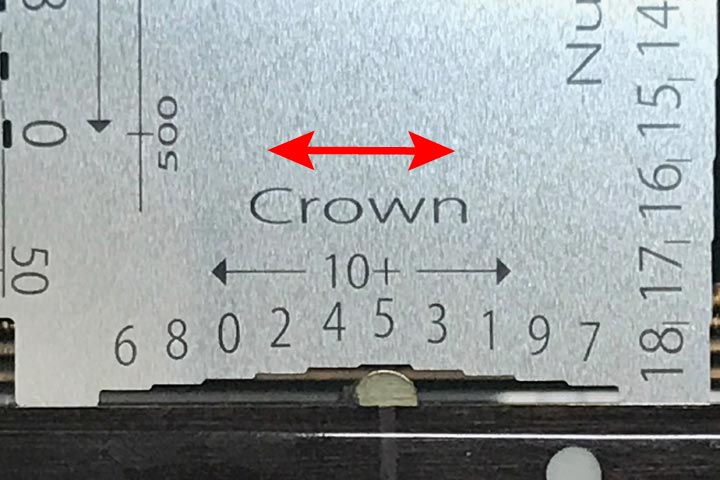

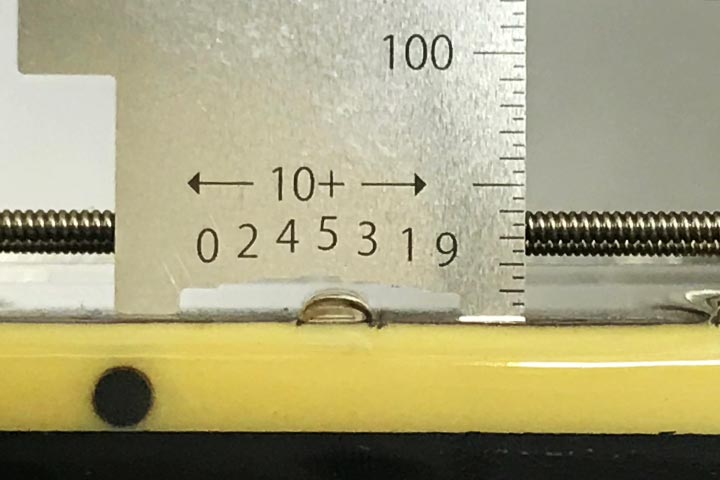

1 : Set Step Gauge (Crown part) over a fret which you want to check.
Slide the gauge to right and left and find the position fret crown top contacts gauge.
Slide the gauge to right and left and find the position fret crown top contacts gauge.

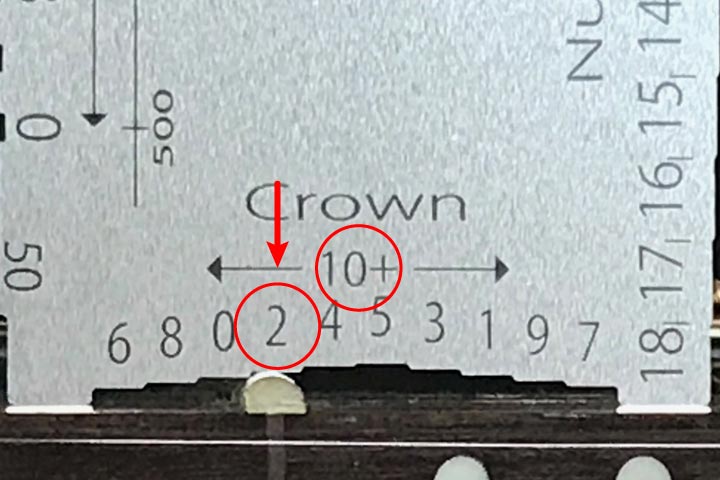

2 : Read the number on the fret crown. Number is 10 times of mm. So devide by 10.
ex. 10+2=12, 12/10 =1.2mm
ex. 10+2=12, 12/10 =1.2mm
String Action

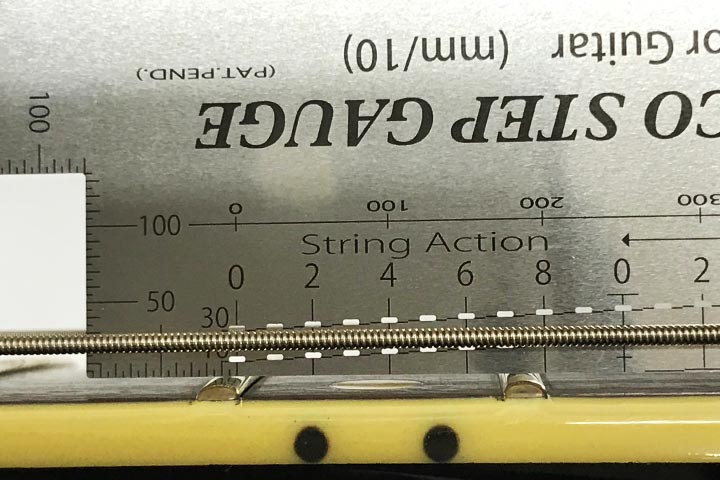

1 : Set Step Gauge (String Action part) at the position which you want to check on the fingerboard.

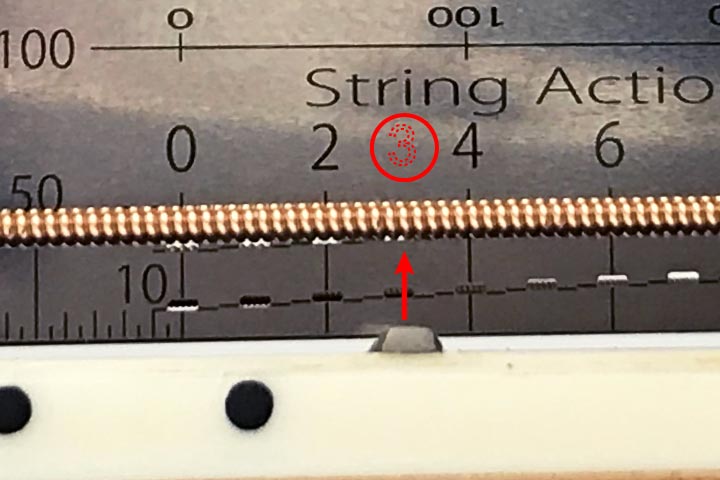

2 : Slide the gauge to right and left and find the same position as the string bottom. 3 : There are slits every 0.1mm level. So easy to see the level checking.
4 : Read the number. Number is 10 times of mm. So devide by 10.
ex. 33, 33/10=3.3mm
2 : Slide the gauge to right and left and find the same position as the string bottom. 3 : There are slits every 0.1mm level. So easy to see the level checking.
4 : Read the number. Number is 10 times of mm. So devide by 10.
ex. 33, 33/10=3.3mm
